Onyx Pro

メーカー : Markforged

造形方式 : FDM

主な使用材料 : Onyx™, fiberglass, etc.

材料の形状 : resin filament

造形サイズ : 320x132x154mm

価格 : Please contact us

カタログダウンロード

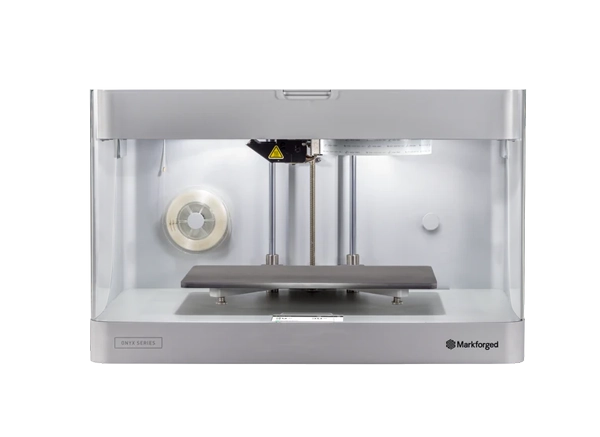

The Onyx Pro is a 3D printer that works with composite materials such as Onyx™ and fiberglass, and can print parts ten times stronger than ABS. It can be used not only for prototyping, but also for molding jigs and final parts, which can be expected to shorten lead times and reduce costs. It has a compact size of 16 kg and is easy to operate and maintain, so it is recommended for those who are using 3D printers for the first time.

View full details

製品説明

[Features of Onyx Pro]

  • It is possible to mold parts with 10 times the strength of ABS on the table.
  • Strength can be improved by patented CFR™ (Continuous Fiber Reinforcement) technology *1 *1 Continuous fibers are embedded between layers during molding.
  • The included software "Eiger" can be operated in the cloud, so you can freely adjust various settings such as the direction of the fibers wherever you are.

VIDEO

製品詳細

    製品名

    Onyx Pro

    メーカー

    Markforged

    国名

    America

    造形方式

    FDM

    本体サイズ

    584x330x355mm

    本体重量

    16 kg

    使用可能材料と形状

    ・Onyx™
    ・Precise PLA
    ・Smooth TPU 95A
    ・Glass fiber

    ノズル径

    0.4 mm

    積層ピッチ

    0.1-0.2mm

    造形速度

    -

    電源

    100-240VAC, 150W

    消費電力

    up to 150W

    スライサーソフト

    Eiger™
