Crane WASP
メーカー : WASP
造形方式 : LDMs
主な使用材料 : concrete, cement, etc.
材料の形状 : cement
造形サイズ : Ø6300 x 3000mm
価格 : Please contact us

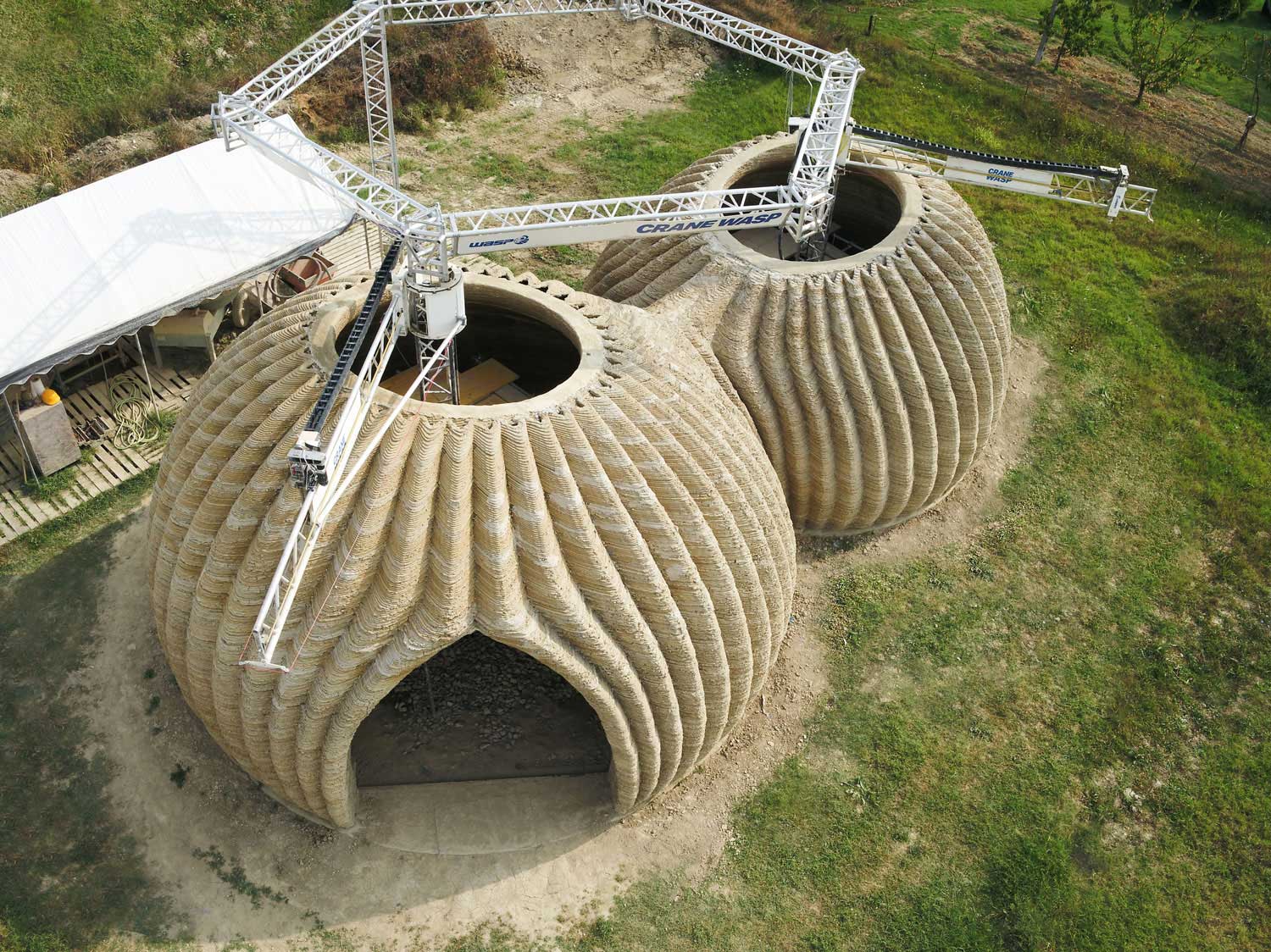

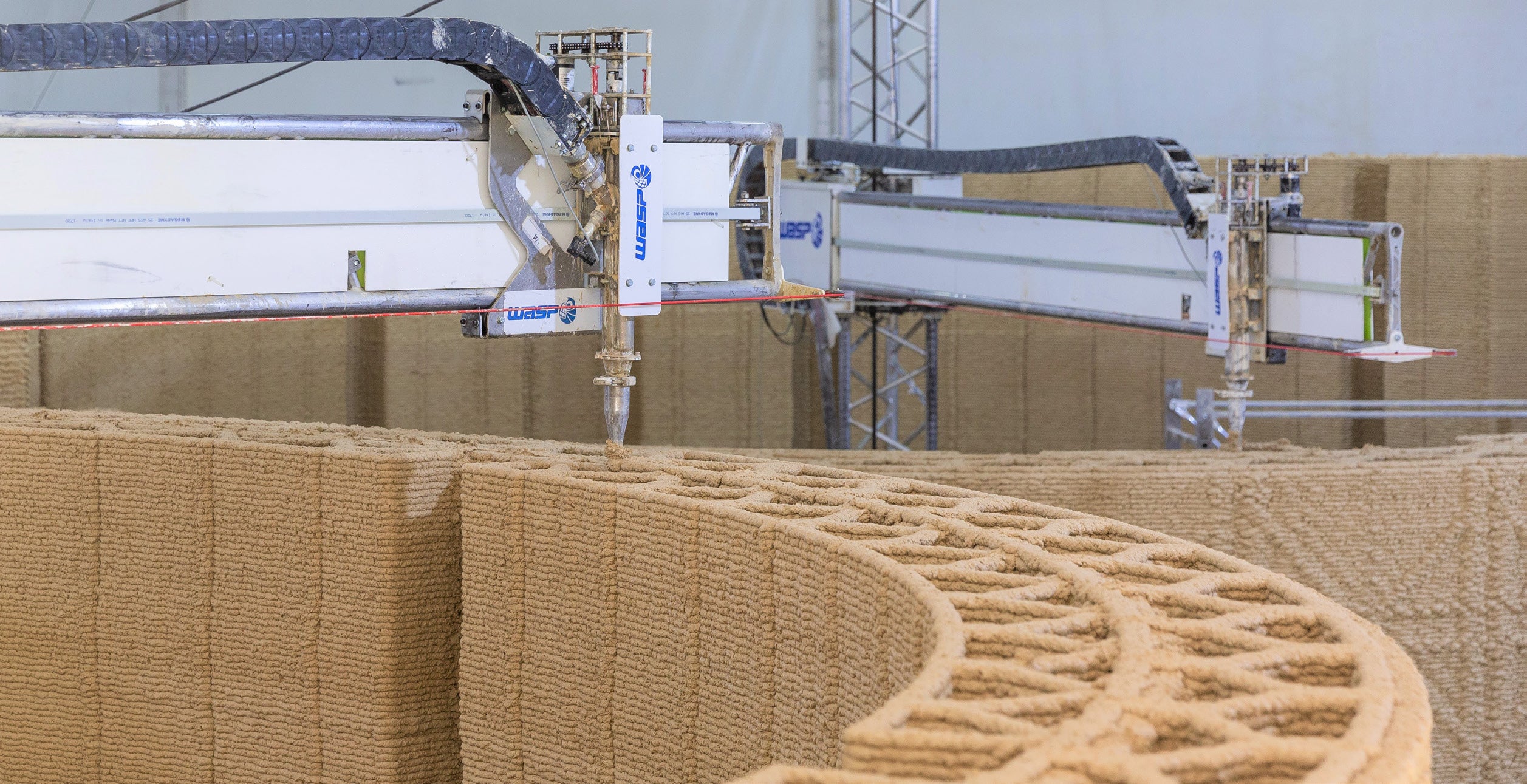

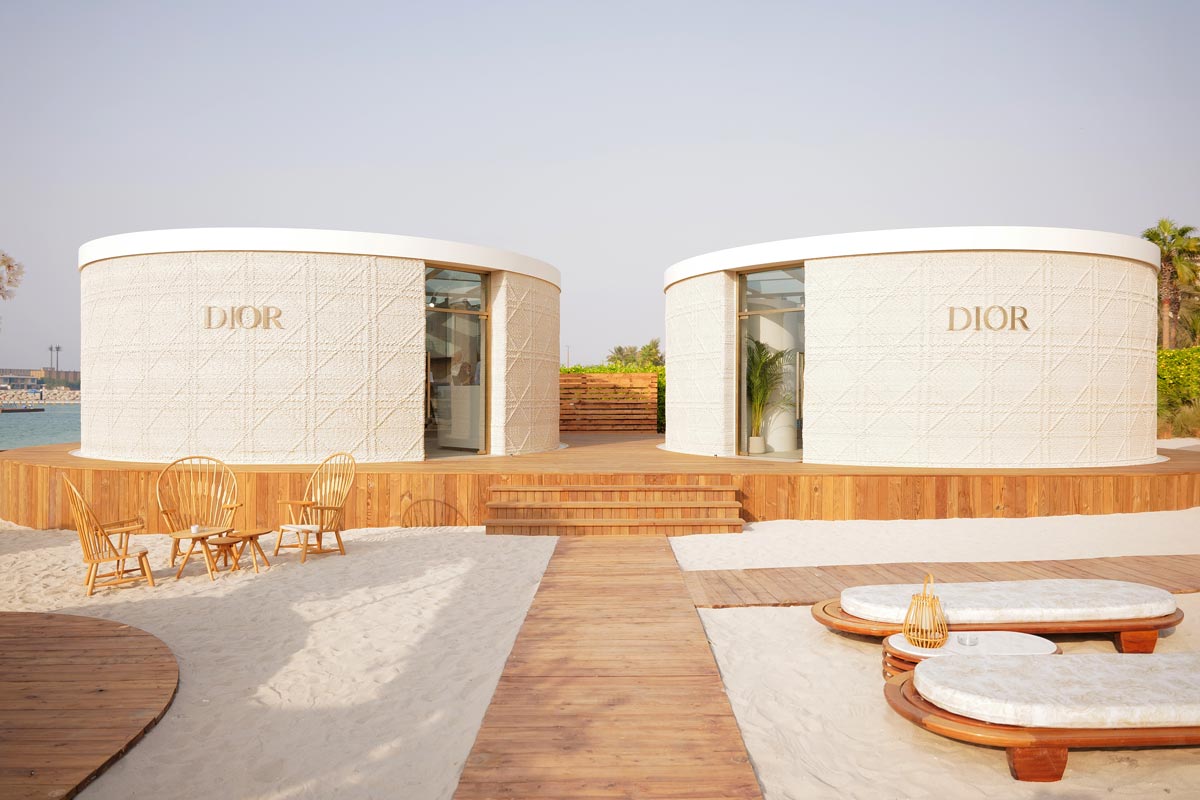

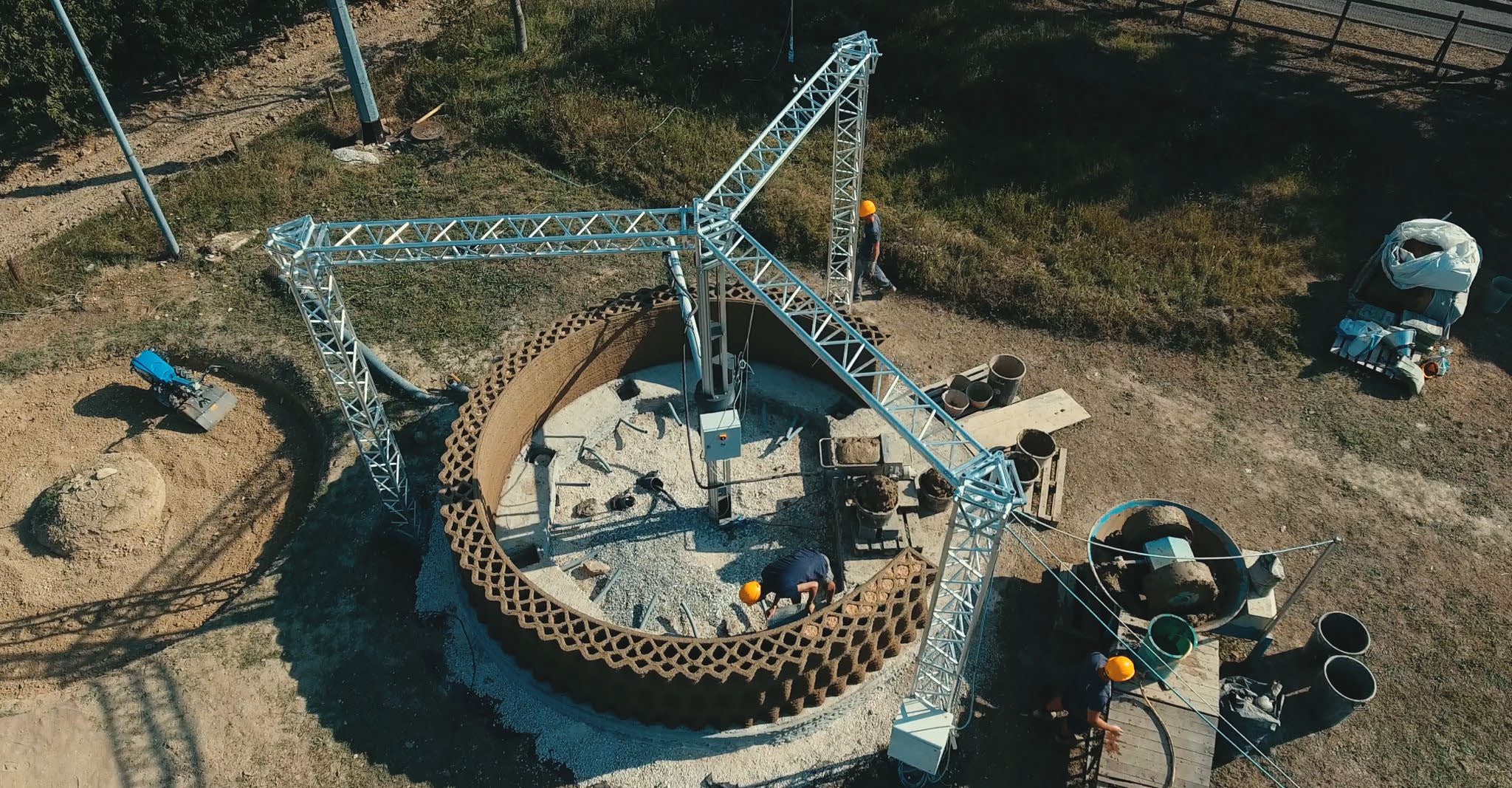

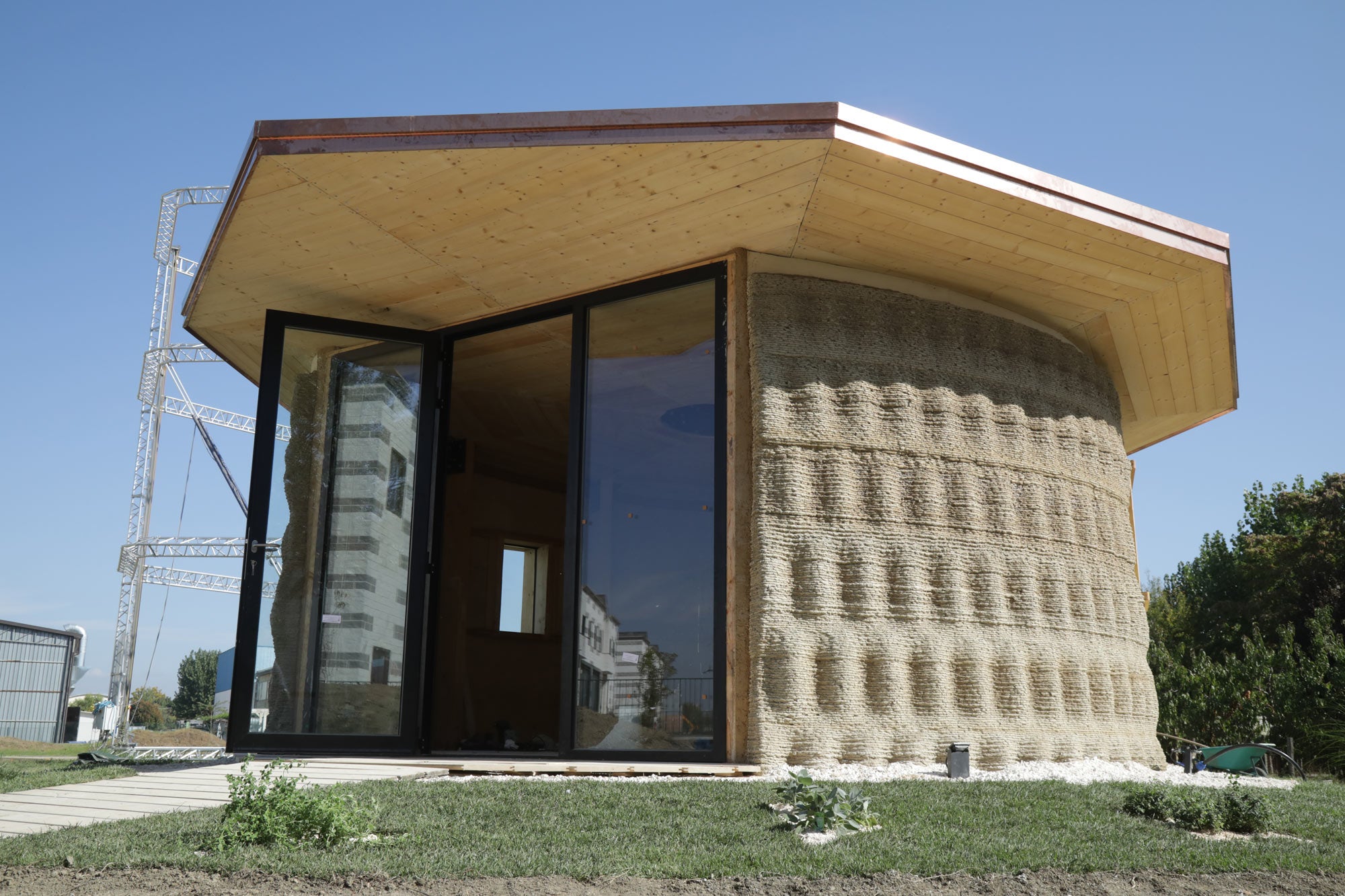

Crane WASP is a 3D printer for architecture and construction that combines a single module of Ø 6300 x 3000 mm and can infinitely expand the modeling area according to the shape and purpose of the building. Using concrete, cement, and natural materials as materials, you can create a variety of buildings such as houses, lodging facilities, and shops.
製品説明
[Features of Crane WASP]

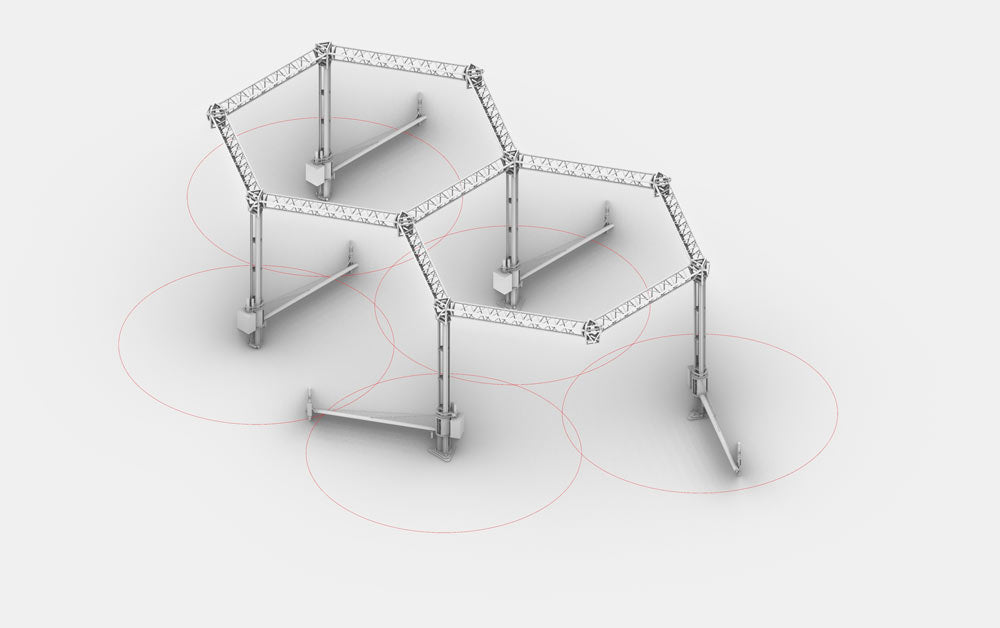

- By combining modules according to the shape and purpose of the building, the modeling area can be infinitely expanded.
- When installing, it can be carried in a container and can be set up in about 3 hours by two adults.
- A collision detection system with an emergency stop switch using a safety rope enables safe work.

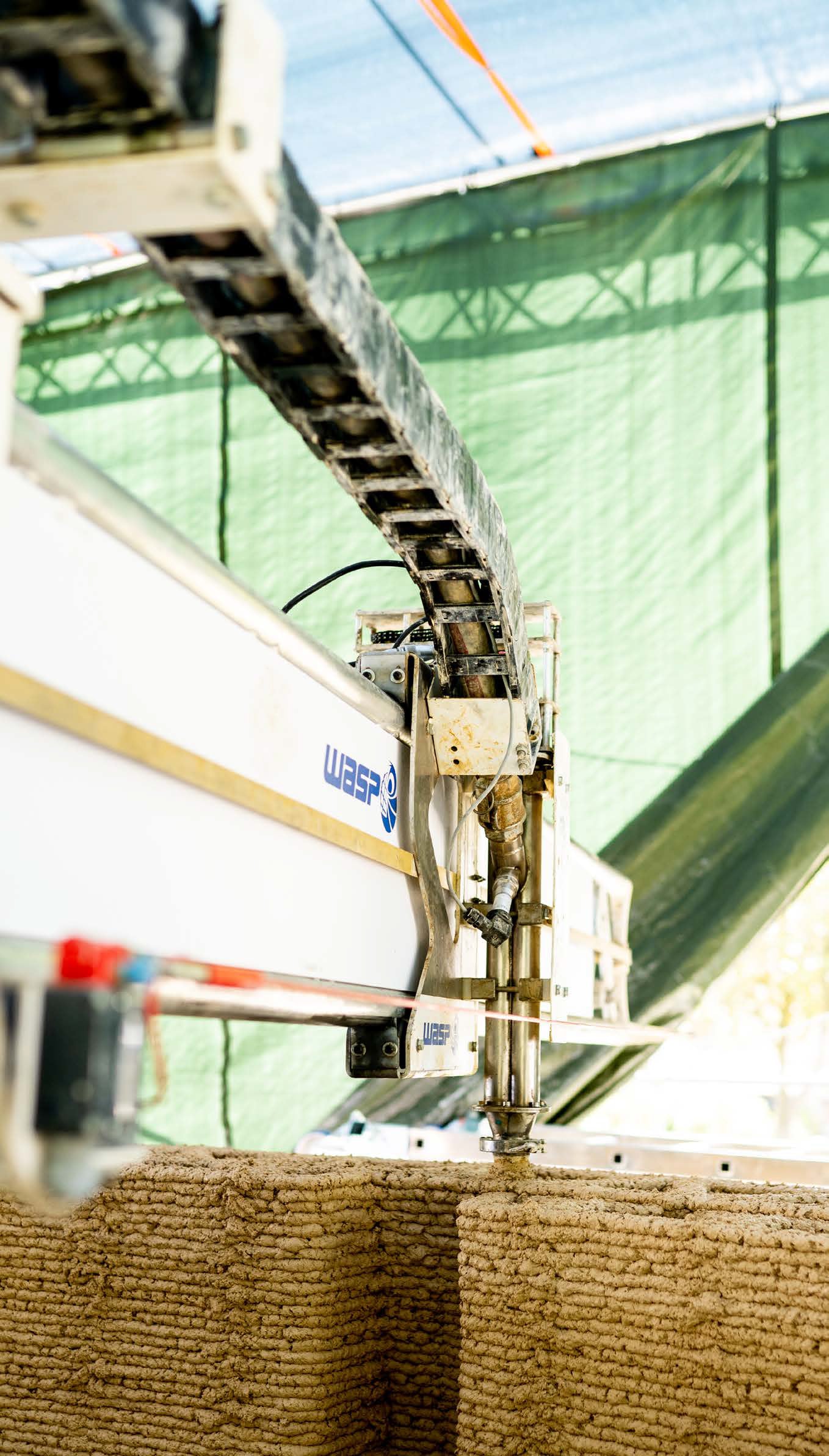

- A pressure sensor is mounted on the twin-screw extruder to manage molding and retraction to achieve stable molding.

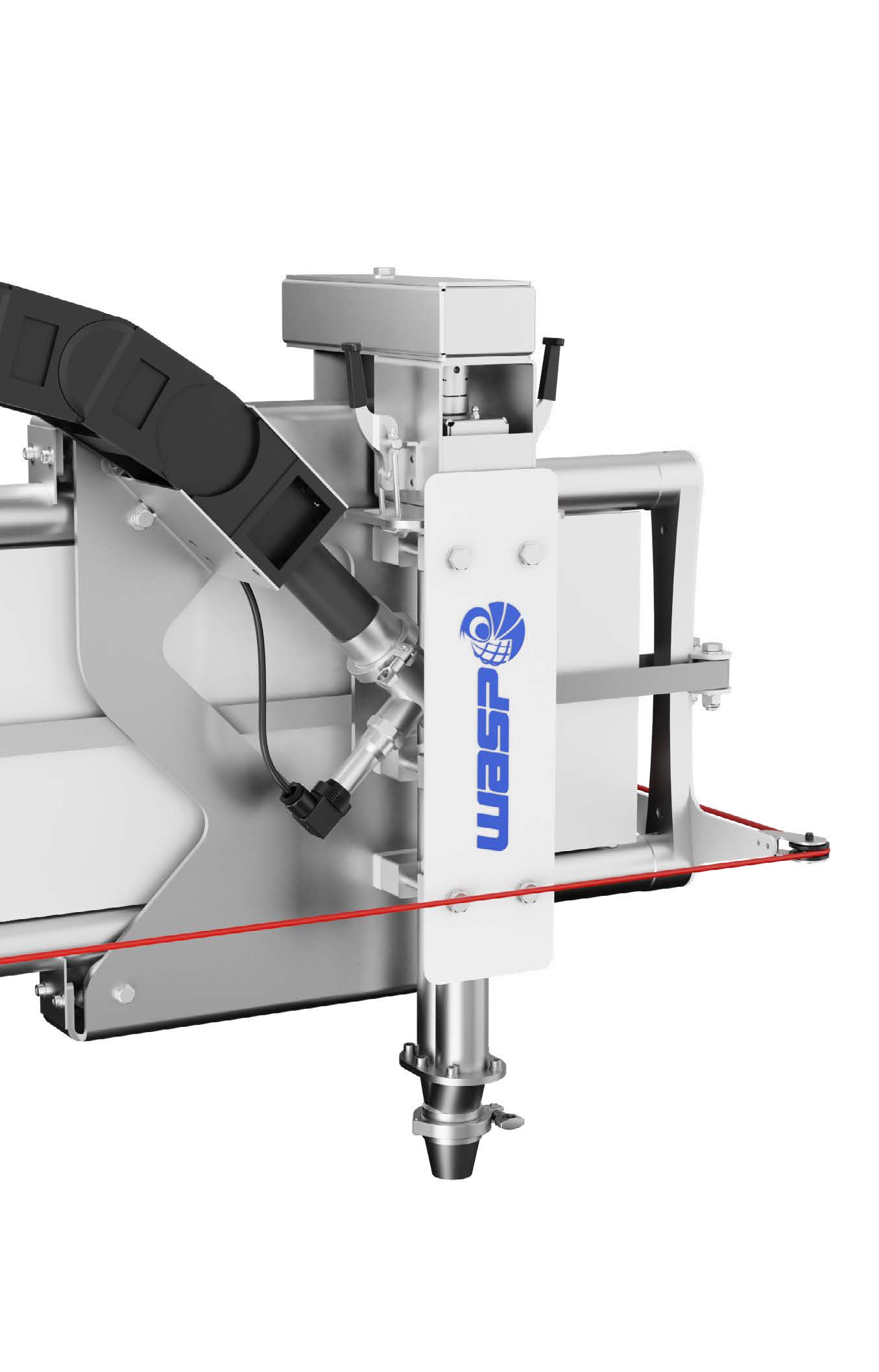

[Features of Twin LDM EXTRUDER XXL]
By using a servo motor, high-precision extrusion molding is achieved, and by incorporating a pressure sensor linked to the pump system, it is possible to adjust the set value in real time.- Nozzle: Ø 25 - 40 mm
[Features of continuous material feeder]
Two motors ensure comfortable workability. The main motor feeds materials suitable for fiber reinforced mixtures with a vertical screw pump system linked to the extruder, and the secondary motor maintains the workability of materials with a built-in single-shaft mixer. It also has a built-in loading system suitable for material supply work by one person.- Supply tank: 3~5L ・Ø 4 - 6 - 8 mm
VIDEO
サンプル
製品詳細
製品名
Crane WASP
メーカー
WASP
国名
Italy
造形方式
LDMs
本体サイズ
40500 x 33000 mm
本体重量
150 kg
使用可能材料と形状
·concrete
·cement
·Natural materials
ノズル径
18-30mm
積層ピッチ
9 mm
造形速度
-
電源
220/240V 50/60Hz (110V compatible)
消費電力
1500W
スライサーソフト
Grasshopper
